Lavry DA10 highend DA converter

[glowingfish]

Lavry DA10 highend Digital to Analog converter


Klasse converter en nog steeds erg goed anno 2023




Zeer geschikt voor in de studio maar ook in een home audio setup.




De hoofdtelefoonversterker is ook van zeer hoge kwaliteit !





Zie internet voor de reviews.





In uitstekende staat en alles werkt uitstekend.







Inclusief voedingskabel.





pecs :

• DESCRIPTION
• KEY FEATURES
• TECH SPECS
• DOWNLOADS

PERFORMANCE

• THD+N at max volume (volume = 56)
•

• • typical, 0.0008% FS
  • maximum 0.0013% FS
  • Test conditions: 20Hz – 20KHz, -3dBFS sine wave, 22-22KHz BW At all possible settings and switch combinations
• Dynamic Range:
•

• • -110dB typical
  • -109 dB minimum
  • Test conditions: Non weighted
  • Valid for all possible settings and switch combinations
• Drive Capability:
•

• • 24dBu Balanced XLR output into 1K ohms at Volume = 56 or lower
  • 21dBu Balanced XLR output into 600 ohms at Volume = 53 or lower
  • 18dBu Unbalanced XLR output into 600 ohms at Volume = 56 or lower
  • 18dBu Headphone into 100 ohms at Volume = 56 or lower *
  • 18dBu Headphone into 50 ohms at Volume = 50 or lower *
• Volume Control Precision:
•

• • Integral linearity (deviation from straight line) – better than 0.1dB
  • Differential linearity (step size) – better than 0.08dB

ANALOG OUTPUT

• The Volume setting controls both the rear panel XLR Line and front panel Headphone outputs

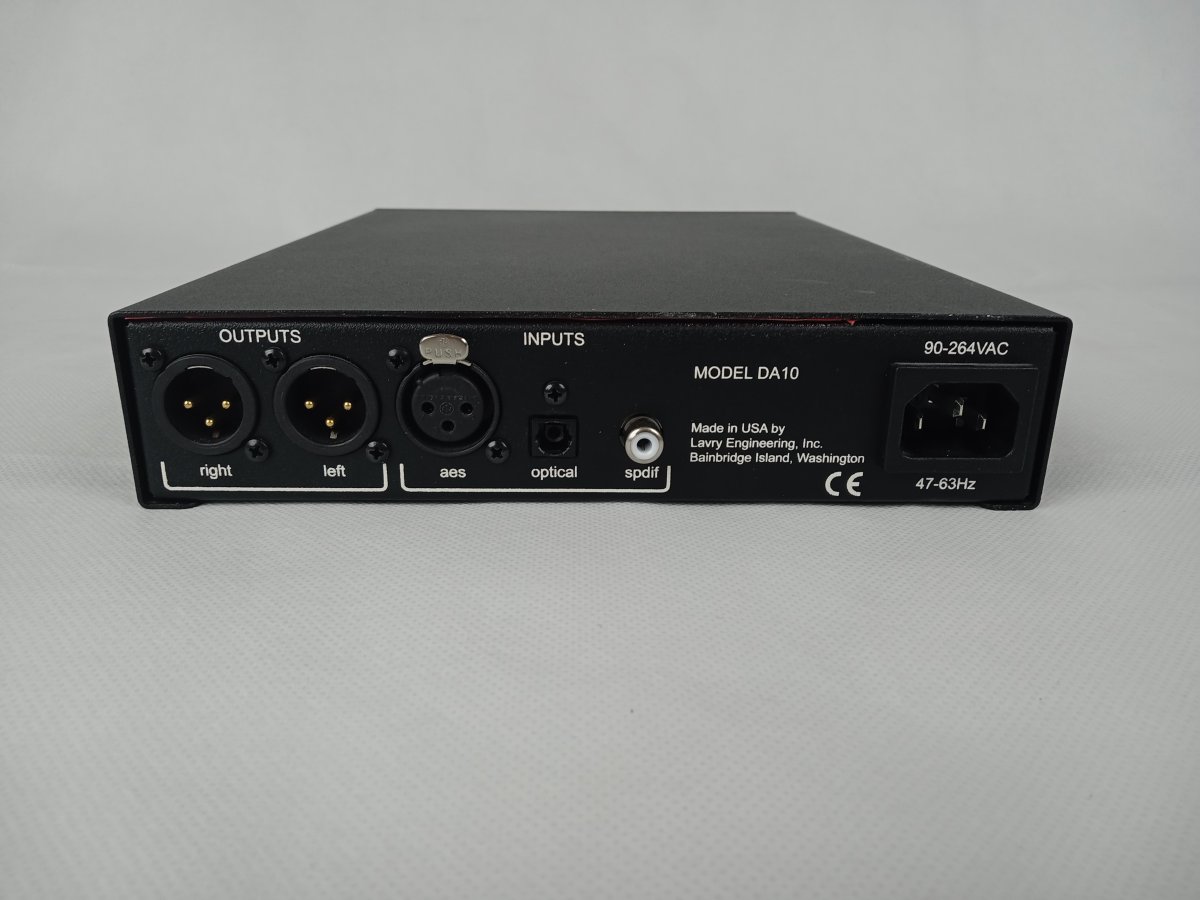

• Line Output – Rear panel balanced XLR. Front panel configurable for unbalanced operation with the included XLR to RCA adapters for connection using “standard” RCA to RCA cables.

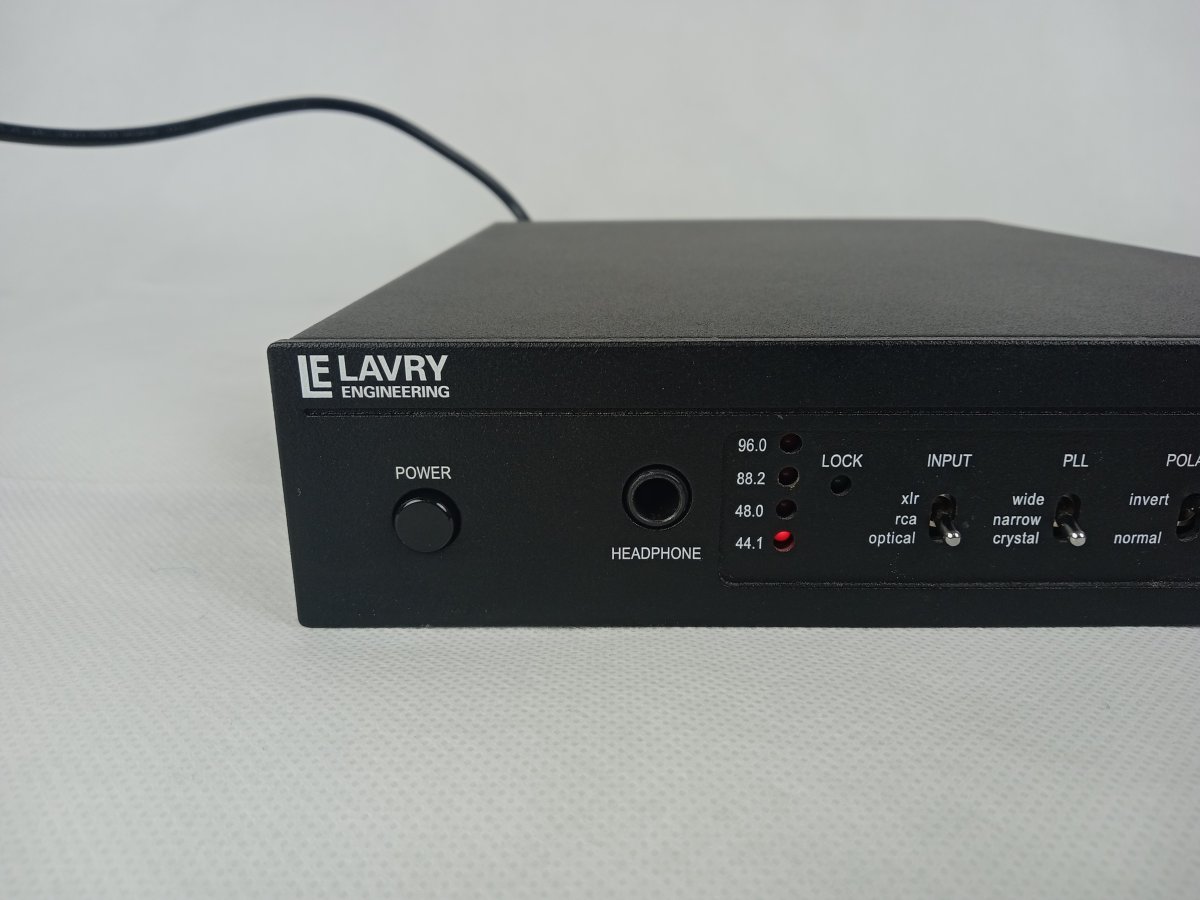

• Headphone Output- Front Panel Stereo ¼” Jack (Line output muting via front panel setting)

*PLEASE NOTE: Do not use “earbuds” or any other type of headphones designed for use with portable battery-powered devices such as an MP3 player. The DA10 is not designed to work with this type of headphone. The headphone output is capable of much higher levels than a battery-powered device in order to properly drive typical HiFi headphones. Damage may occur to the portable device headphones if they are connected with the DA10 Volume control set to a higher setting.

DIGITAL INPUT

• XLR- accepts AES/EBU or SPDIF/ IEC 60958 type II formats with sample frequencies between 32 and 200 kHz
• RCA- accepts AES/EBU or SPDIF/ IEC 60958 type II formats with sample frequencies between 32 and 200 kHz
• Opt- accepts AES/EBU or SPDIF/ IEC 60958 type II formats with sample frequencies between 32 and 96 kHz
•

• • The optical input is not recommended for inputs with sample frequencies higher than 96 kHz)
• USB- accepts inputs using native OS drivers with sample frequencies between 44.1 and 96 kHz

POWER

• Voltage 90-264 VAC, Frequency 40-63Hz, Current 0.1A
• Fuse Rating 2.5A “Time Delay”
• Please Note: The DA10 automatically adjusts to AC power inputs in the range of 90 to 264 Volts AC and line frequencies between 47 and 63 Hertz. There are no settings to change

PHYSICAL

• Dimensions:
•

• • 8” wide x 1.75” high x 10.75” deep (with space for front panel switches and rear panel connectors)
• Weight:
•

• • Less than 5lbs. (shipping weight 6
